- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHC-1020/NHC-1225/NHC-1525

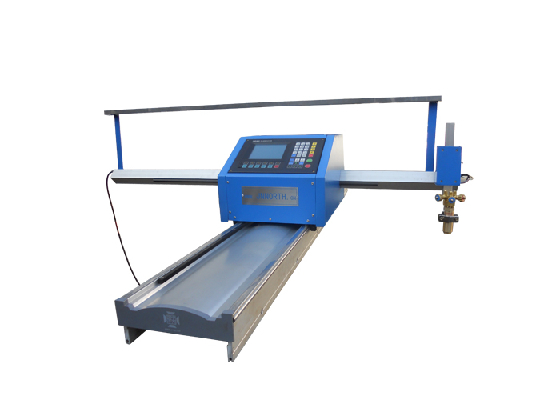

CNC cutting machine can be programmed to cut any plane shape parts, which are same as large gantry cutting machines. It is equipped with a 5.7 inch LTD with dynamic and static graphical display. It is directly perceived and very easy to learn .It can be programmed to cutting parts directly, and also can be operated in computer translating instructions into a program file by CAD program, and then deducing it via U hardware. The standard positioning of this machine is flame cutting, external hanging plasma cutter is also workable.
Product advantage of CNC cutting machine
Less investment, the higher cutting efficiency, lower operating and maintenance cost!
when cutting the thickness of the steel plate under 30mm , It has better advantage . Cutting costs about one-tenth of the laser cutting edge and one-sixth of water jet cutting.
This product is suitable for large, medium and small mines, widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.
Software and material
CAD drawings and computer graphics can be reduced to G code which used to cutting components,
Code file G deposit ORM, and input into the cutting machine, the system will automatically make the G code convert cutting program.
This product with USB interface, convenient program transmission. In material software Set cutting compensation.
(1) Numerical Controls
1,5.7 inches and high resolution LCD of Monitor . Displaying cutting graphics and cutting orbits. Operate more simplified.
2,Keyboard and buttons operating mode.
3,Support USB file. Also it can be manually edit cutting program (G code).
4,2 axis line and circular interpolation.
5,Support suspend workin-process suspending, forward, backward, speed governing and so on.
6, System has power failure of memory function and back parameter and automatic perforation cutting function.
7, System has manual and electric going up and down control function.
8, Has cutting gap compensation function.
9, Electronic clutch operation, convenient and realize rapid positioning (and stop button).
10, The temperature fan, and start up when need pneumatics. It can extend fan's life-span.
(2)Component parts
1,It is composed of the horizontal, vertical guide rails, and host.
2,The host part, the MOD adopts to prevent magnetic structure, ensure reliable and stable operation of the CNC system.
3, Driven is 1.8 track support motor
- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHC-1020/NHC-1225/NHC-1525
Specification of CNC cutting machine
Models | NHC-1020 | MHC-1225 | NHC-1525 |
Input power source | 220±10%V AC 50HZ 220W | ||
Cutting way | Oxygen propane or acetylene; Configurable plasma cutting machine | ||
Effective cutting range(mm) | 1000×2000 | 1250×2500 | 1500×2500 |
Guide long × width × thick (mm) | 2500×273×60 | 3000×273×60 | 3000×273×60 |
The number of track support | 2 | 3 | 3 |
Track support length × width × thickness mm | 500×80×40 | ||
Cutting speed mm/min | 50-2000(max. 4000) | ||
Cutting thickness (Flame) mm | 5-150(Oxygen acetylene or propane) | ||
Cutting thickness (Plasma)(mm) | plasma power | ||
Operation precision | ±0.2mm/m | ||
Torch and turn up | flame,electric turn up(±50mm) | ||
Host weight(kg) | 20 | ||
Gas pressure (Mpa) | Maximum 0.1 | ||
Oxygen pressure (Mpa)
| Maximum 0.7 | ||
Applicable gas species | Oxygen propane or acetylene | ||
