Portable CNC Flame Plasma Cutting Machines (NHC-1020, NHC-1225, NHC-1525)

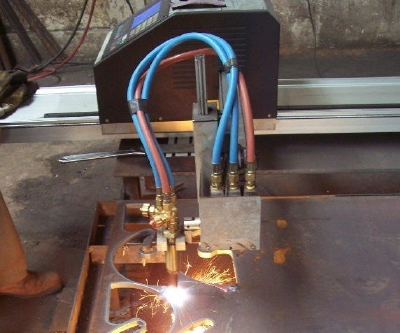

Jinan North Portable CNC flame plasma cutting machines can be programmed to cut any plane shapes. It is equipped with a 5.7 inch Ltd with dynamic and static graphical display. It is directly perceived and easy to learn. It can also can be operated in computer translating instructions into a program file by CAD program, and then deducing it via U hardware.
Our leading products include: Welding positioners, welding turntables, welding tables, light welding positioners, positioners for welding robot, automatic welding positioners, semi-auto welding positioners, welding positioners with welding chucks, welding positioners with welding torch support, welding positioners with air powered tail stocks, light welding turning rolls, light roller rotators, pipe rotators, welding tanks, welding Circulation water cooling tanks, portable CNC plasma cutting machines, portable CNC flame cutting machines, portable CNC flame/plasma cutting machines, wire feeder, welding chuck for welding positioners, adjustable welding torch gun support, adjustable bracket, DC motor and all kinds of wire feeding parts.
- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: (NHC-1020, NHC-1225, NHC-1525)
Technical Parameters :
Models | NHC-1020 | NHC-1225 | NHC-1525 |
Input power source | 220±10%V AC 50HZ 220W | ||
Cutting way | Oxygen propane or acetylene;Configurable plasma cutting machine | ||
Effective cutting range(mm) | 1000×2000 | 1250×2500 | 1500×2500 |
Guide long * width * thick (mm) | 2500×273×60 | 3000×273×60 | 3000×273×60 |
The number of track support | 2 | 3 | 3 |
Track support length ×width ×thickness mm | 500×80×40 | ||
Cutting speed mm/min | 50-2000(max 4000) | ||
Cutting thickness (Flame) mm | 5-150(Oxygen acetylene or propane) | ||
Cutting thickness (Plasma)(mm | plasma power | ||
Operation precision | ±0.2mm/m | ||
Torch and turn up | flame,electric turn up(±50mm) | ||
Host weight(kg) | 20 | ||
Gas pressure (Mpa) | Maximum 0.1 | ||
Oxygen pressure (Mpa) | Maximum 0.7 | ||
Applicable gas species | Oxygen propane or acetylene | ||
Usage | cutting any plane shapes | ||
