- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHTR-1000
Characteristics:
Polyurethane wheel, heat-resistant, non-skid.
Stepless adjustable speed with Ac motor, wildly speed adjustable range.
Special wheel design, increasing the applicabale diameter of the workpiece.
With compact, simple and light structure , adapts to various working environment.
Equipped with manual control box, the initiation and termination of roller wheel frame are easily taken under controlled
The manual control box can real-time control the rotating speed, on/of positive/reverse rotation of roller wheel frame
Suitable for welding and cutting of the elongated workpiece
- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHTR-1000

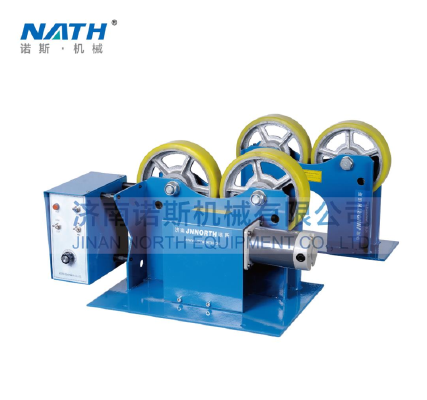

Specification of the NHTR-1000 pipe welding turning roller :
Model | NHTR-1000 |
Input Voltage | AC220/110V,50/60Hz |
Loading capacity | 1000kgs |
Speed Range | 80-1600mm/min |
Diameter Range | φ20-800mm |
Drive Motor | DC Motor,220V/110V,100W |
Roller Type | 50mm(W)*φ200mm |
Drive Dimension(Including control box) | 580*360*350mm |
Slave Dimesion | 450*120*350mm |
Net Weight | 54kg |
