- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHCZ-1515

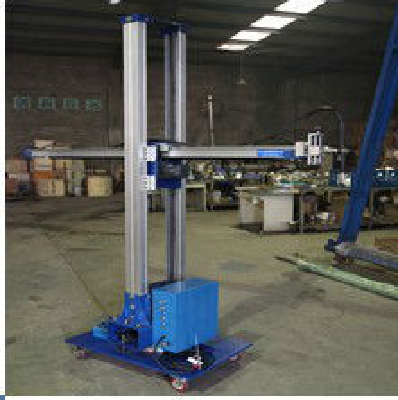

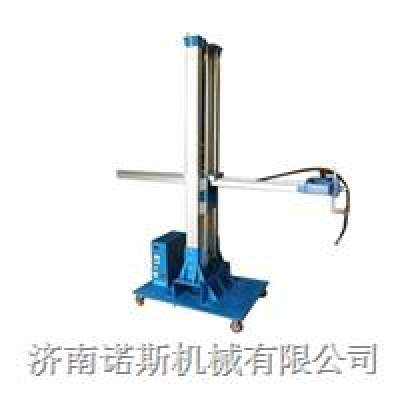

Brief introduction of Micro-precision automatic welding column & boom:
This welding column & boom set the switch interface aside peripheral equipment, can be composed and linkage with welding positioner, turning rolls and welding power, can achieve automatic welding for the girth and straight of the inside and the outside of the cylinder or other metal structure.
The brand of the main components:
1. Inverter:Schneider
2. Electric elements:OMRON
- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHCZ-1515
Specification of Micro-precision automatic welding column & boom:
Model | NHCZ-1515 |
Power Input | 3ph 380VAC 50/60Hz |
Beam Lift Itinerary | 1400mm |
Beam Stretch Itinerary | 1300mm |
Beam Lift Speed | 700mm/Min |
Beam Stretch Speed | 200--1500mm/Min |
Beam Drive Mode | Inverter Motor Ball Screw Drive |
Head Level Fine-tuning Itinerary | 100mm |
Head Vertical Fine-tuning Itinerary | 100mm |
Head Adjustment Mode | Electrically Adjust |
Control Mode | Hand Control Box Control |
Over Dimension H×L×B | 2300×2200×620mm |
