Product Details
- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHCZ-1515

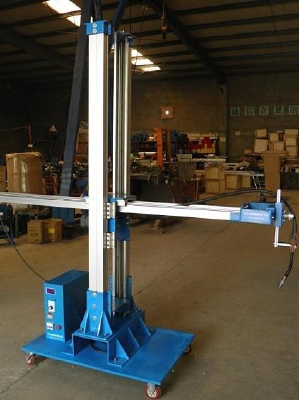

The specification of the Micro-precision automatic welding manipulator :
This machine set the switch interface aside peripheral equipment, can be composed and linkage with welding positioner, turning rolls and welding power, can achieve automatic welding for the girth and straight of the inside and the outside of the cylinder or other metal structure
The Micro-precision automatic welding manipulator can coordinate with the roller rotator.
- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHCZ-1515
Model | NHCZ-1515 |
Power Input | 3ph 380VAC 50/60Hz |
Beam Lift Itinerary | 1400mm |
Beam Stretch Itinerary | 1300mm |
Beam Lift Speed | 700mm /Min |
Beam Stretch Speed | 200--1500mm/Min |
Beam Drive Mode | Inverter Motor Ball Screw Drive |
Head Level Fine-tuning Itinerary | 100mm |
Head Vertical Fine-tuning Itinerary | 100mm |
Head Adjustment Mode | Electrically Adjust |
Control Mode | Hand Control Box Control |
Over Dimension H×L×B | 2300×2200×620mm |
