- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: HRT-DI
Electric Tapping Machine Characteristics:
1. Use 220 v ac servo motor, touch display screen, set torsion output digital control speed, position can be controlled ,the parameter can be set in precision to control the tapping depth.
2. The machine equipped with a pendulum Angle head, can be placed to four 90 angle position, so that can achieve horizontal and vertical direction tapping, the horizontal tapping easily suitable for long shaft class with two face tapping, more suitable for large workpiece, need not move back and forth the workpiece .
3. As the CNC equipment partner, it can become the auxiliary working table. Let operating workers waiting time become productive, Make CNC free from "tapping", "chamfering" tedious work, greatly improving the CNC and operation efficiency of the workers.
4. The ergonomic design, the operation is simple, comfortable, reduce the feeling of fatigue
5. When working, do not produce the tension and pressure, running free and flexible, the balance is accurate and in place.
6. The servo motor can adjust speed in infinite period , together with drum band overload protection device, thus tapping a little injury, screw thread accuracy, high overload operation will not damage motor.
7. Heavier workpiece don't need positioning or flip, loading the universal head makes it ok .
- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: HRT-DI

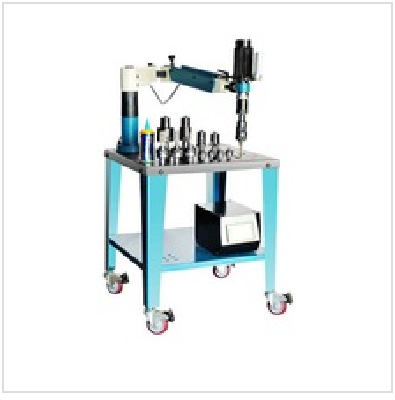

High Quality Electric NC Tapping Machine (HRT-DI/DII)
Model Number | HRT-DI | HRT-DII | |||||
Working Radius (mm) | 970 | 1100 | |||||
Balance arm rotation Angle (º) | 360 | 360 | |||||
Motor Power | 600W | 750W/1000W | |||||
Single-Phase Ac Voltage(V) | 220V/50HZ | 220V/50HZ | |||||
Reducing Mechanism(r/min) | A350 | A230 | B90 | A350 | A230 | B90 | B45 |
Maximum Torque(N.M) | 40 | 61 | 158 | 40 | 61 | 158 | 305 |
Elastic Collet Connection Size(Mm) | Φ19 | Φ19 | Φ30 | Φ19 | Φ19 | Φ30 | Φ30 |
Tapping Capacity Steel, Stainless Steel | M3-M12 | M3-M14 | M12-M18 | M3-M12 | M3-M14 | M12-M20 | M20-M30 |
Tapping Ability Cast Iron, Non-Ferrous Metal | M3-M14 | M3-M16 | M12-M20 | M3-M14 | M3-M16 | M12-M22 | M20-M33 |
