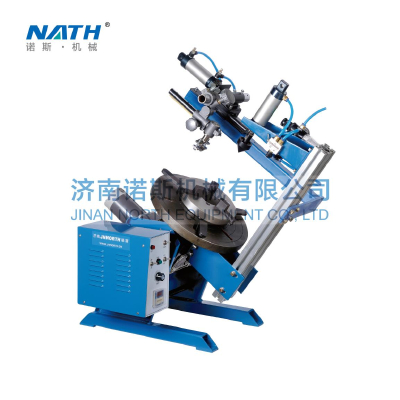

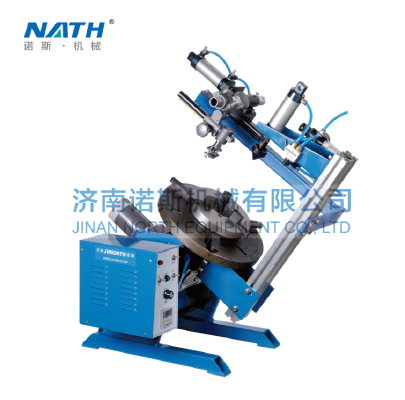

This combined type Welding Positioner is a type of automatic positioner.

it can works in MIG/MAG,CO2 and TIG welding process .Making a set of special circumferential automatic welding system.

This welding positioner is suitable for circular and ring workpiece , for example :spare parts for car, pipe , flange ,bellows and other metals parts which need mass of circumferential welding

The brand of the main components:

1. Inverter:Schneider

2. Electric elements:OMRON

Main characters :

1.The rotation structure is driven by the AC motor, while stepless speed regulation can be achieved.
2. The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90 degree.
3. Special design of anti-electromagnetic, which reduces the high frequency interference of TIG's welding, and can improve the welding quality effectively.
4. A self-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
5. The adjustable-welding gun support can be furnished to fix the position of the welding torch.
6. The track and air-powered tip can be furnished to achieve the function of self-holding to the workpieces.
