- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: BY-10

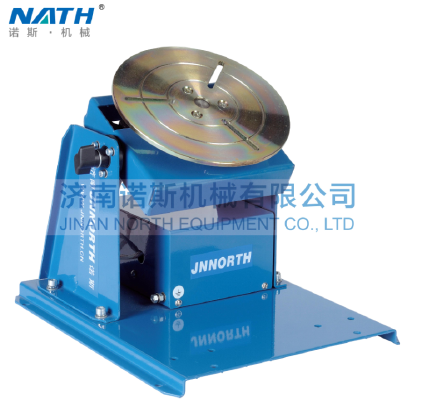

BY-10 light duty welding positioner is designed for rotation of lighter work pieces.
BY-10 welding positioner is a robust solution for consistent holding and rotating of parts in your welding workstation.
The BY-10 positioner offers manual tilt adjustment, high frequency protection, and heavy-duty foot control switch.
The rotation speed of BY-10 welding positioner can be 2-10rpm and could be adjusted steplessly.
Main characters :
1.The rotation structure is driven by the DC motor, while stepless speed regulation can be achieved.
2. The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90 degree.
3. Special design of anti-electromagnetic, which reduces the high frequency interference of TIG's welding, and can improve the welding quality effectively.
4. A self-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
5. The adjustable-welding gun support can be furnished to fix the position of the welding torch.
6. The track and air-powered tip can be furnished to achieve the function of self-holding to the workpieces.
- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: BY-10
Specification of BY-10 Welding Positioner:
Model | BY-10 |
Power Input | AC110V/220V 50/60Hz |
Capacity(horizontal/vertical) | 10Kg/5Kg |
Table Dimension | 180mm |
Table Height | 215mm |
Rotation Speed | 2~10 rpm |
Tilt Range | 0~90° |
Tilt Mode | Manual |
Rotation Motor | 10W |
Over Dimension | 370×270×215mm |
