- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHTR-1000

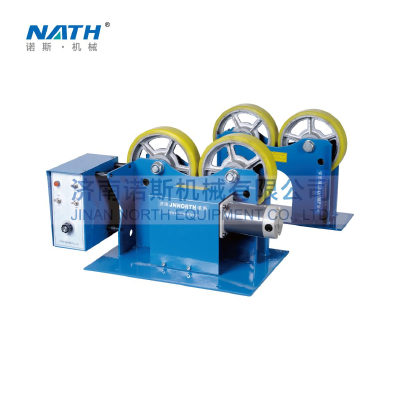

Brief introduction of 1000kg welding rotator:
1000kg welding rotator characterized by simple, compact structure, small bulk, light weight and great suitable ability...And this machine can work under various condition, can support the cylindrical or columniform workpiece with weight under 1000kg, diameter of 20mm-700. (NHTR-3000 welding turning roll could work with pipe diameter from 40 to 1500mm). Then its rotation speed is stepless adjustable when the rotation speed is 80-1600 mm/min. Easy to operating and installing, and with the virtue of being practical.
This welding positioner is suitable for circular and ring workpiece , for example :spare parts for car, pipe , flange ,bellows and other metals parts which need mass of circumferential welding
- Place of Origin: Shandong
- Brand Name: NATH
- Model Number: NHTR-1000
Specification of 1000kg welding rotator:
Model | NHTR-1000 |
Power Input | 1 Phase ,AC110/220v,50/60Hz |
Turning Capacity | 1000Kg |
Load Capacity | 1000Kg |
Max Speed | 1500mm/min |
Diameter Range | 20-700mm |
Drive Motor | DC220V 120W |
Roller Type | NH,50mm(W)*200mm |
Dimension | 520(L)*470(W)*390(H)mm |
Net Weight | Drive 45Kg ,Idler 20Kg |
